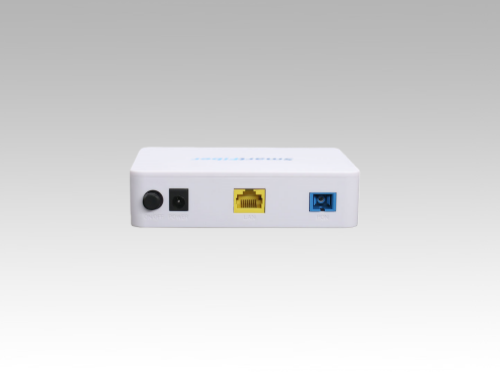

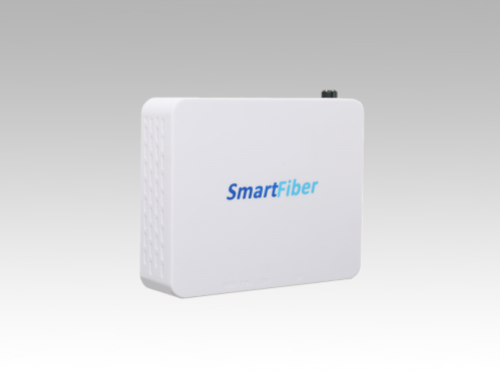

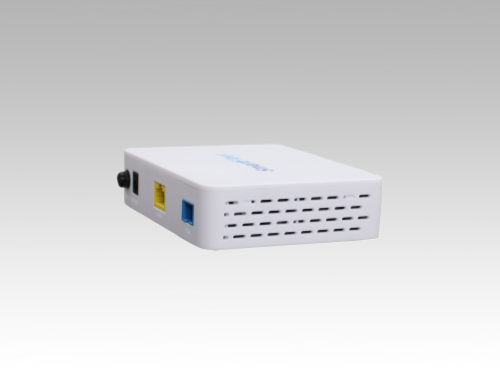

1GE XPON ONU XP8100CTA
1GE XPON ONU XP8100CTA
1GE XPON ONT is one of the XPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data and video service based on the XPON network, it support epon onu mode and gpon onu mode.
It provide one GE auto-adapting Ethernet ports. The 1GE XPON ONT features high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. Therefore, the 1GE XPON ONT provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome.also Supports VSOL, CDATA, BDCOM, HSGQ and other third-party OLTs.
-
Features
n Fully compatible with ITU-T G.984.1/2/3/4,IEEE802.3ah
n Support downlink rate 2.448Gbit/s, uplink rate is 1.244Gbit/s
n Support 32 TCONT, 256 GEMPORT
n Support bidirectional FEC,supports the RS (255, 239) FECdecoding
n Support AES128 encryption and decryption functions with G.984 standard
n Support DBA bandwidth allocation
n Support three layer routing functions
n Support PLOAM, embedded OMCI management with G.984 standard
n Support Dying-Gas detection and reporting
n Support rogue ONU detection
n Support XPON energy saving of G987.3 protocol
n Support Tag/Untag Ethernet frame of 802.1 and Q 802.3 standard, support QinQ
n Support for flexible flow classification, maximum 520 flow classification rules
n Support link error monitoring and loop monitoring
n Support a variety of multicast forwarding mode, support multicast replication
n Auto-negotiation and manual settings of Ethernet supporting rate, duplex mode
n UNI interface supports STP/RSTP protocol
n Provide QoS guarantees for different priority business
-
Item
Parameters
Specification
Interface
PON Port
1*XPON port, FSAN G.984.2 standard/IEEE802.3ah
Downstream Data Rate：2.488Gbps
Upstream Data Rate：1.244Gbps
SC/UPC single mode fiber
28dB Link loss and 20KM distance with 1:128
Receiving sensitivity:≤-30dBm
Transmitting optical power:0~+4dBm
Ethernet Port(LAN)
1*GE Auto-negotiation RJ45 ports
Full Duplex / Half-Duplex
RJ45, Auto-MDI/MDI-X
Transmission Distance 100 Meter
Power Supply Port
12V DC input
Management
NetworkManagement
Standard compliant OMCI interface as defined by ITU-T G.984.4
Support WEB management
Management
Function
Status monitor, Configuration management, Alarm management, Log management
Environmental
SpecificationsShell
Plastic casing
Power
External 12V 0.5ADC power supply adapter
Power consumption: <<>3W
Dimensions
113mm(L) x92mm(W) x28mm (H)
0.25kg
Environment
Operating Temperature：0～50℃
StorageTemperature：-40～85℃
Operating Humidity：10%～90%(Non-condensing)
StorageHumidity：10%～90%(Non-condensing)
