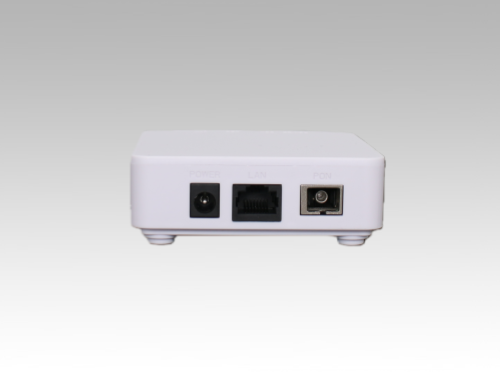

1GE XPON mini ONU(XP8100MR)

1GE XPON mini ONU(XP8100MR)

     The 1GE XPON ONT is a professional optical network unit developed for modern broadband access networks, widely applied in FTTH, FTTO and fiber access scenarios. It supports EPON ONU, GPON ONU and XPON ONU working modes, and stably delivers high-quality data and video services over XPON fiber access networks.This device is equipped with one auto-adaptive GE Ethernet port. Adopting mature fiber access technology, it delivers powerful data forwarding performance, stable operation and outstanding anti-interference capability, ensuring fluent internet access and ultra-smooth HD video playback all the time.With excellent multi-brand interoperability, it is fully compatible with mainstream third-party OLT devices including VSOL, CDATA, BDCOM, HSGQ, Huawei, ZTE and Fiberhome. Featuring high reliability, robust performance and future-proof scalability, this 1GE XPON ONT serves as an ideal access terminal for large-scale FTTH network deployment.



  • Features

    n Fully compatible with ITU-T G.984.1/2/3/4,IEEE802.3ah

    n Support downlink rate 2.448Gbit/s, uplink rate is 1.244Gbit/s

    n Support 32 TCONT, 256 GEMPORT

    n Support bidirectional FEC,supports the RS (255, 239) FECdecoding

    n Support AES128 encryption and decryption functions with G.984 standard

    n Support DBA bandwidth allocation

    n Support three layer routing functions

    n Support PLOAM, embedded OMCI management with G.984 standard

    n Support Dying-Gas detection and reporting

    n Support rogue ONU detection

    n Support XPON energy saving of G987.3 protocol

    n Support Tag/Untag Ethernet frame of 802.1 and Q 802.3 standard, support QinQ

    n Support for flexible flow classification, maximum 520 flow classification rules

    n Support link error monitoring and loop monitoring

    n Support a variety of multicast forwarding mode, support multicast replication

    n Auto-negotiation and manual settings of Ethernet supporting rate, duplex mode

    n UNI interface supports STP/RSTP protocol

    n Provide QoS guarantees for different priority business

    n Support flow control based on entrance , choose Pause frame reaction pressure to Packet loss for the business beyond

    n Support HQoS function


  • Specification

    Item

    Parameters

    Specification

    Interface

    PON Port

    1*XPON port, FSAN G.984.2 standard/IEEE802.3ah

    Downstream Data Rate：2.488Gbps

    Upstream Data Rate：1.244Gbps

    SC/UPC single mode fiber

    28dB Link loss and  20KM distance with 1:128

    Receiving sensitivity:≤-30dBm

    Transmitting optical power:0~+4dBm

    Ethernet Port(LAN)

    1*GE Auto-negotiation RJ45 ports

    Full Duplex / Half-Duplex

    RJ45, Auto-MDI/MDI-X

    Transmission Distance 100 Meter

    Power Supply Port

    12V DC input

    Management

    NetworkManagement

    Standard compliant OMCI interface as defined by ITU-T G.984.4

    Support WEB management

    Management

    Function

    Status monitor, Configuration management, Alarm management, Log management

    Environmental
    Specifications

    Shell

    Plastic casing

    Power

    External 12V 0.5ADC power supply adapter

    Power consumption: <<>3W

    Dimensions

    82mm(L) x88mm(W) x23mm (H)

    0.2kg

    Environment

    Operating Temperature：0～50℃

    StorageTemperature：-40～85℃

    Operating Humidity：10%～90%(Non-condensing)

    StorageHumidity：10%～90%(Non-condensing)
