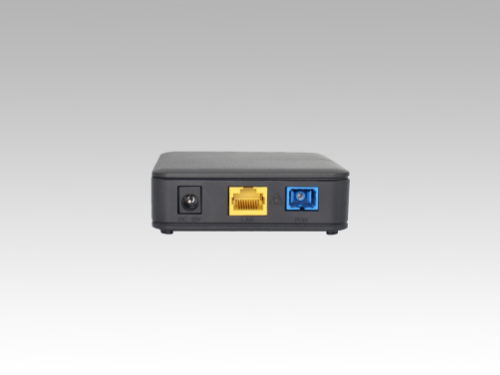

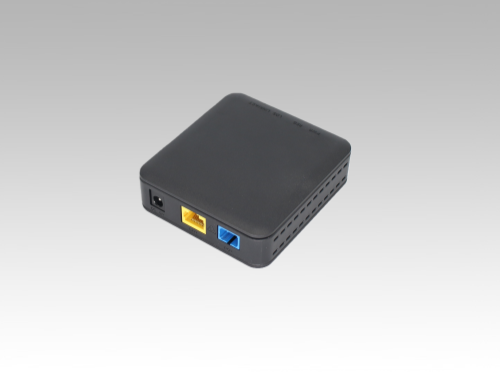

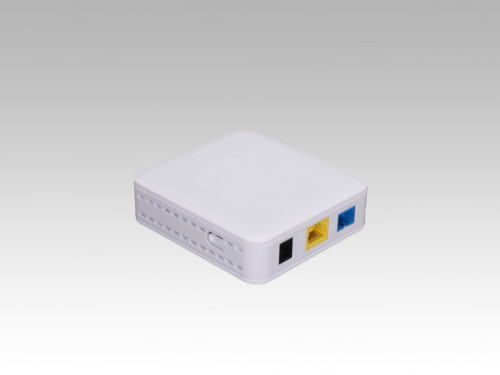

1GE XPON mini ONU(XP8100MZ)

1GE XPON mini ONU(XP8100MZ)

    The 1GE XPON ONT is a dedicated optical network unit engineered for fiber broadband access networks, extensively deployed in FTTH, FTTO and fiber-to-the-user scenarios. It supports EPON ONU, GPON ONU and XPON ONU modes, delivering stable data and video transmission over passive optical networks.Equipped with one auto-adaptive GE Ethernet port, this terminal adopts mature fiber access technology and delivers powerful data forwarding performance. It runs steadily with strong anti-jamming capability, guaranteeing fluent internet access and lag-free HD video streaming.Boasting outstanding cross-platform interoperability, it is fully compatible with mainstream third-party OLT devices, including VSOL, CDATA, BDCOM, HSGQ, Huawei, ZTE and Fiberhome. With high reliability, robust performance and excellent expandability, this 1GE XPON ONT is a reliable and future-proof terminal solution for large-scale FTTH network construction and operation.


  • Features

    n Fully compatible with ITU-T G.984.1/2/3/4,IEEE802.3ah

    n Support downlink rate 2.448Gbit/s, uplink rate is 1.244Gbit/s

    n Support 32 TCONT, 256 GEMPORT

    n Support bidirectional FEC,supports the RS (255, 239) FECdecoding

    n Support AES128 encryption and decryption functions with G.984 standard

    n Support DBA bandwidth allocation

    n Support three layer routing functions

    n Support PLOAM, embedded OMCI management with G.984 standard

    n Support Dying-Gas detection and reporting

    n Support rogue ONU detection

    n Support XPON energy saving of G987.3 protocol

    n Support Tag/Untag Ethernet frame of 802.1 and Q 802.3 standard, support QinQ

    n Support for flexible flow classification, maximum 520 flow classification rules

    n Support link error monitoring and loop monitoring

    n Support a variety of multicast forwarding mode, support multicast replication

    n Auto-negotiation and manual settings of Ethernet supporting rate, duplex mode

    n UNI interface supports STP/RSTP protocol

    n Provide QoS guarantees for different priority business through SLA restraining, Policing, queue management scheduling / congestion avoidance, discarding management mode

    n Support flow control based on entrance , choose Pause frame reaction pressure to Packet loss for the business beyond

    n Support HQoS function


  • Specification

    Item

    Parameters

    Specification

    Interface

    PON Port

    1*XPON port, FSAN G.984.2 standard/IEEE802.3ah

    Downstream Data Rate：2.488Gbps

    Upstream Data Rate：1.244Gbps

    SC/UPC single mode fiber

    28dB Link loss and  20KM distance with 1:128

    Receiving sensitivity:≤-30dBm

    Transmitting optical power:0~+4dBm

    Ethernet Port(LAN)

    1*GE Auto-negotiation RJ45 ports

    Full Duplex / Half-Duplex

    RJ45, Auto-MDI/MDI-X

    Transmission Distance 100 Meter

    Power Supply Port

    12V DC input

    Management

    NetworkManagement

    Standard compliant OMCI interface as defined by ITU-T G.984.4

    Support WEB management,router fuction.

    Management

    Function

    Status monitor, Configuration management, Alarm management, Log management

    Environmental
    Specifications

    Shell

    Plastic casing

    Power

    External 12V 0.5ADC power supply adapter

    Power consumption: <<>3W

    Dimensions

    82mm(L) x88mm(W) x23mm (H)

    0.21kg

    Environment

    Operating Temperature：0～50℃

    StorageTemperature：-40～85℃

    Operating Humidity：10%～90%(Non-condensing)

    StorageHumidity：10%～90%(Non-condensing)
