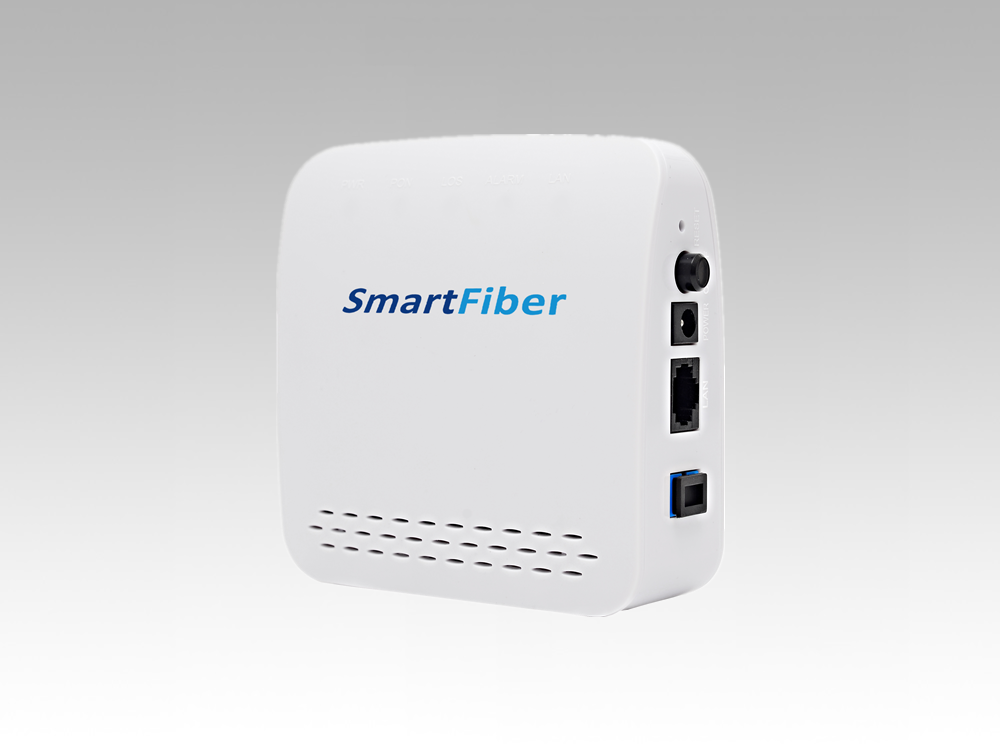

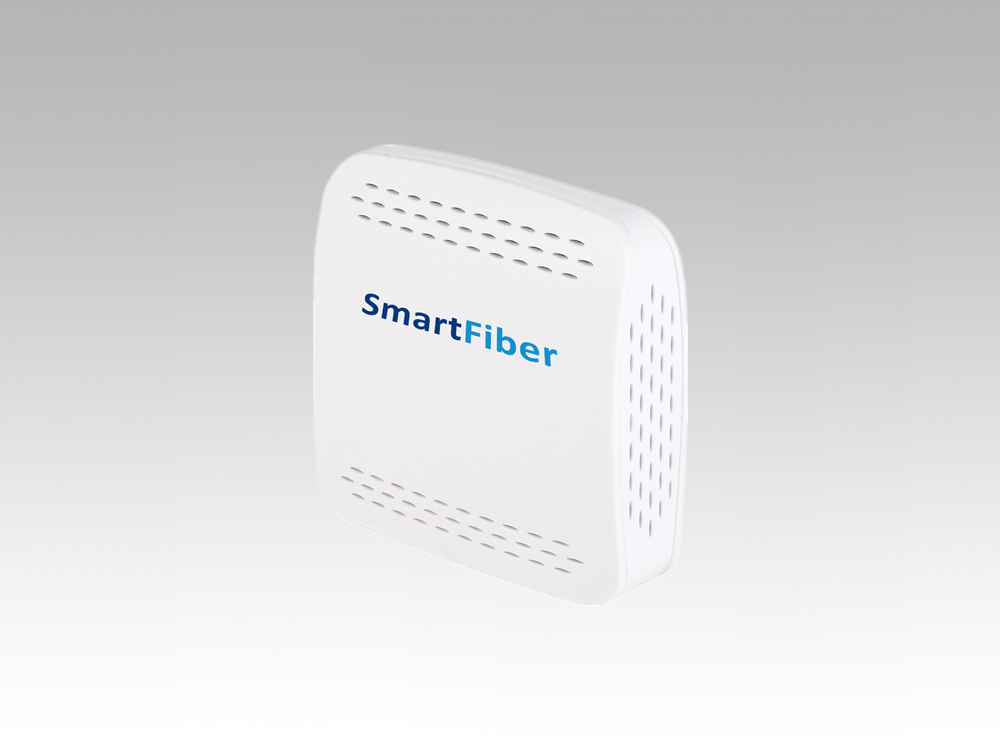

1GE GPON ONU GP8100N
1GE GPON ONU GP8100N
1GE GPON ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data and video service based on the GPON network. 1GE GPON ONT is based on ZTE high-performance PON access chip. Comply with the GPON standard of g.984, g.983,have good PON interoperability compatibility. It provide one GE auto-adapting Ethernet ports. The 1GE GPON ONT features high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. Therefore, the 1GE GPON ONT provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome.
-
n Full compatible with IEEE802.3ah
n Support port-based rate limitation and bandwidth control;
n In compliant with IEEE802.3ah Standard
n Up to 20KM transmission Distance
n Support data encryption, group broadcasting, port Vlan separation ,etc.
n Support Dynamic Bandwidth Allocation (DBA)
n Support ONU auto-discovery/Link detection/remote upgrade of software;
n Support VLAN division and user separation to avoid broadcast storm;
n Support power-off alarm function ,easy for link problem detection
n Support broadcasting storm resistance function
n Support port isolation between different ports
n Support three layer routing functions
n Support ACL and SNMP to configure data packet filter flexibly
n Specialized design for system breakdown prevention to maintain stable system
n Support software online upgrading
-
Item Parameters Specification Interface PON Port 1*GPON port FSAN G.984.2 standard
Downstream Data Rate：2.488Gbps
Upstream Data Rate：1.244Gbps
SC/UPC single mode fiber
28dB link loss and 20KM distance with 1:128
Receiving sensitivity:≤-30dBm
Transmitting optical power:0~+4dBmEthernet Port(LAN) 1*GE Auto-negotiation RJ45 ports
Full Duplex / Half-Duplex
RJ45 Auto-MDI/MDI-X
Transmission Distance 100 MeterPower Supply Port 12V DC input Management NetworkManagement Standard compliant OMCI interface as defined by ITU-T G.984.4
Support WEB managementManagement
FunctionStatus monitor Configuration management Alarm management Log management Environmental
SpecificationsShell Plastic casing Power External 12V 0.5ADC power supply adapter
Power consumption:<3w<>Dimensions 110mm(L) x100mm(W) x23mm (H)
0.3kgEnvironment Operating Temperature：0～50℃
StorageTemperature：-40～85℃
Operating Humidity：10%～90%(Non-condensing)
StorageHumidity：10%～90%(Non-condensing)
