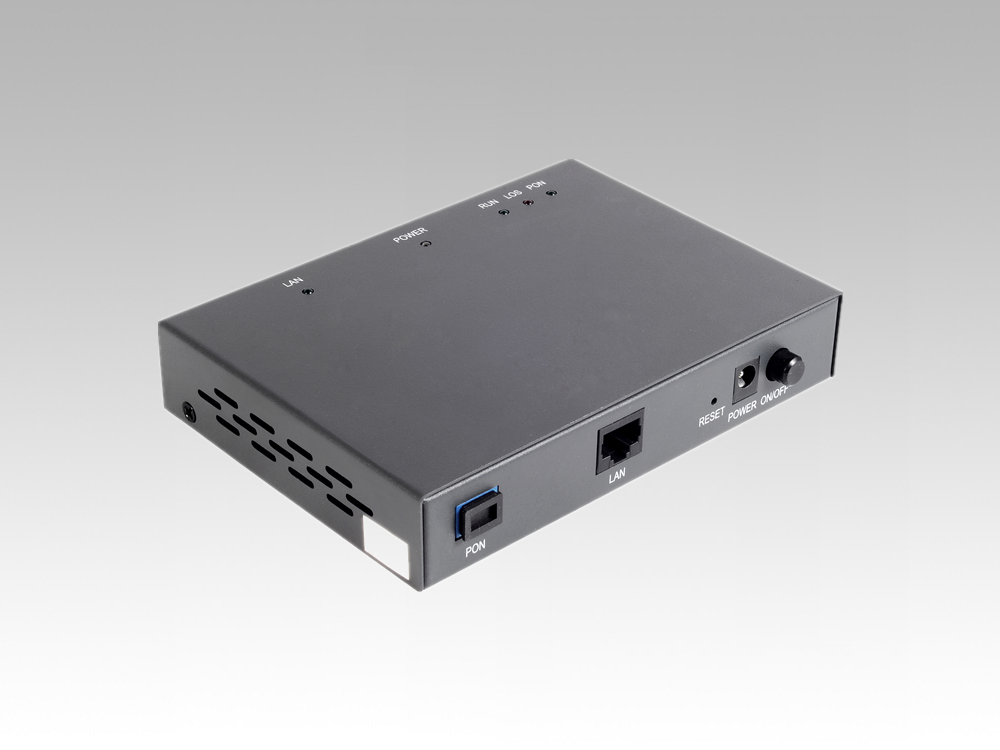

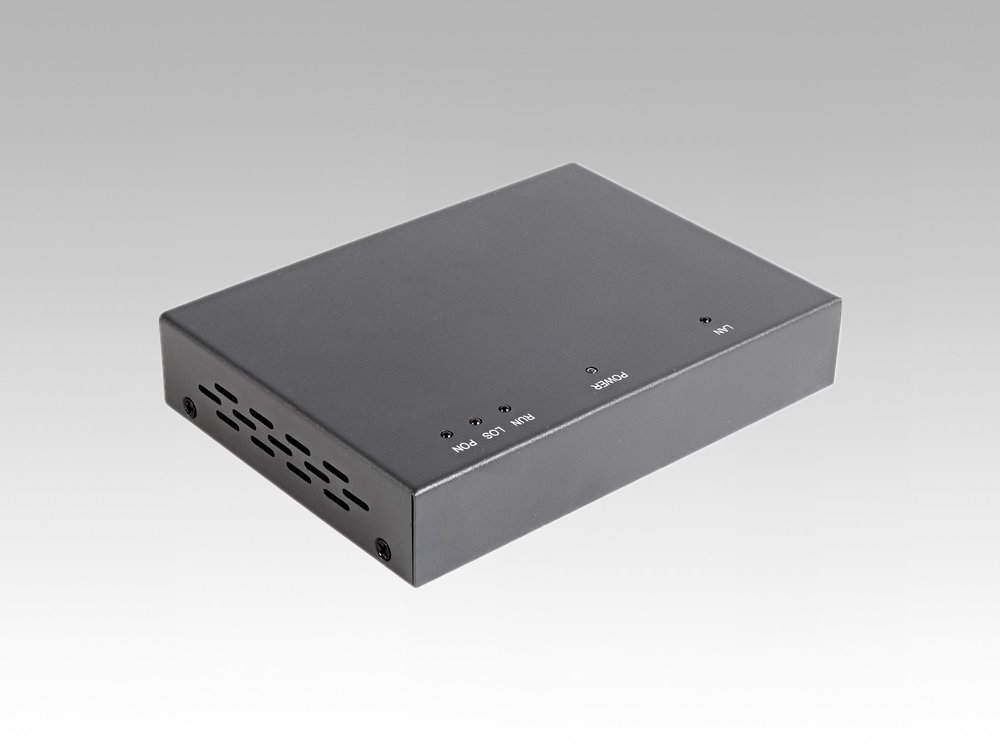

1GE EPON ONU
1GE EPON ONU
JY-EP8001 is Smartfiber company access to applications for large-scale carrier-grade EPON FTTB ONU equipment, the series follows the IEEE 802.3-2005 comprehensive EPON equipment and technical requirementss of China Telecom V2.1, unified, open software and hardware architecture provide a powerful network management capabilities, to achieve a flexible network and management system, with telecom-grade operations, manageability and easy to maintain. Provide users with fiber to the building (FTTB, Fiber To The Building) solutions.
-
>Conform to IEEE802.3ah standard and meet CTC V2.1 technical requirements
>Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services
>Support frame filtering and suppression
>Support standard 802.1Q Vlan function support VLAN conversion
>Support 4094 VLANs (802.1Q)
>Support Dynamic Bandwidth Allocation (DBA) function
>Support QoS including traffic flow classification priority marking queue and dispatch traffic shaping and traffic control etc
>Single ONU supports up to 1 LLID.
>Support IGMP Snooping
>Support Ethernet port ratelimit loop detection
>Support power failure alarm
>Support lightning protection for power supply and lightning protection for service port -
Item Parameters Specification Interface PON Port 1 EPON optical interface
Meet 1000base-PX20+ standard
Symmetric 1.25Gbps upstream/downstream
SC single-mode fiber
split ratio: 1:64
Transmission distance 20KM
Receiving sensitivity:≤-28dBm
Transmitting optical power:0~+4dBmEthernet Port(LAN) 1*GE Auto-negotiation RJ45 ports
Full Duplex / Half-Duplex
RJ45 Auto-MDI/MDI-X
Transmission Distance 100 MeterManagement NetworkManagement Support IEEE802.3 QAM ONU can be remotely managed by OLT
Support Remote management through SNMP and Telnet
Local managementManagement
FunctionStatus monitor Configuration management Alarm management Log management
